TubTrax Module System

Tubing tracks with modular system

In a comprehensive catalog, you can select the right module for your tubing track, depending on your wishes and terrain planning.Whether straight downhill or with fast curves through tunnels or overpasses, our TubTrax modular systems are compatible for both straight stretches and curves. They can be easily expanded as needed and the modules are quick to assemble.

TubTrax-Module:
M1 - M2.1 - M2.2 - M3

Module Tubing Bahn Systeme

In addition to the fast Tubtrax sliding mats, we also offer the corresponding modules for installation "as desired".

A tubing track requires side walls on both sides for a straight course. These side walls ensure a clear path and keep the tubing tube and rider within the track.

Should there be multiple trains When built side-by-side, the corresponding side panels ensure a safe track. If you want to build a longer track with curves, or if you simply need a fast curve at the end of a tubing run to bring the tube to a stop, our curve modules are exactly what you need.

Due to different soil conditions in different countries, these modules are offered with either a closed or an open floor.

You can choose between four modular systems: M1, M2.1, M2.2, and M3. This allows you to select the module that best suits the terrain. See the positioning below. Our galvanized, lightweight metal structures are easy to assemble on-site with your own team. We also offer an optional flexible start gate for a quick start.

Jumps into airbags are becoming increasingly popular for both indoor and outdoor use. We also offer suitable, stable metal ramps/kickers for this purpose.

In a comprehensive catalog, you can select the right material for your tubing track, depending on your wishes and terrain planning.

We offer the following modules, which are compatible with each other:

With our new TubTrax tubing module systems, we build tubing runs according to your wishes. We have the selection – you just have to choose how the tubing run should look.

Summary:

Unique modules for straight lines and curves
Compatible with each other
Galvanized for long life
Year-round use
Quickly assembled - quickly disassembled
Low operating costs
Perfect combination of tubes and mats

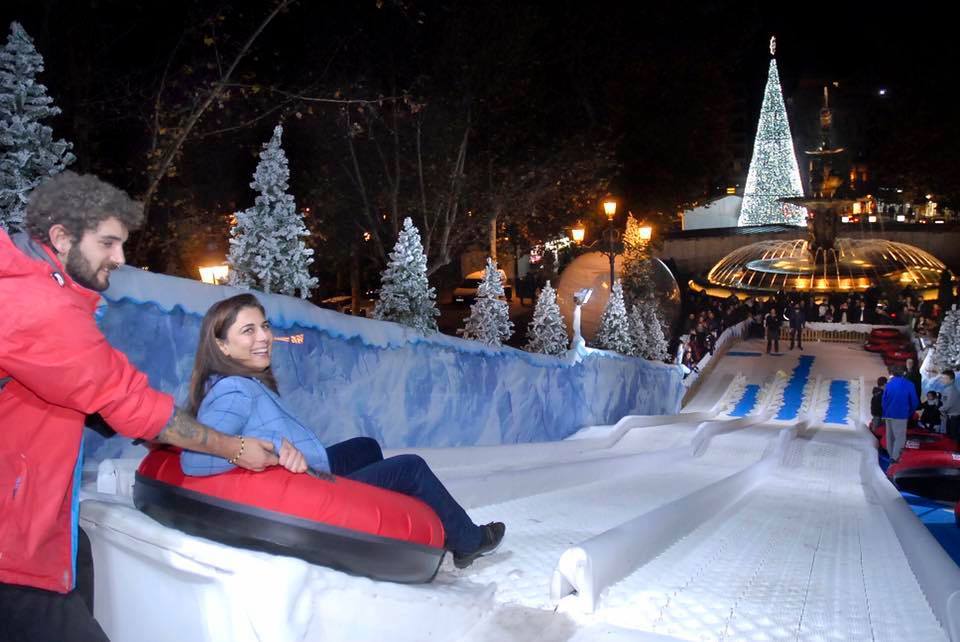

Multiple lanes side by side are possible.
Curves and straightaways can also lead over bridges and tunnels.

Click here for the Tubtrax gliding mat overview.

We offer the following four modular systems:

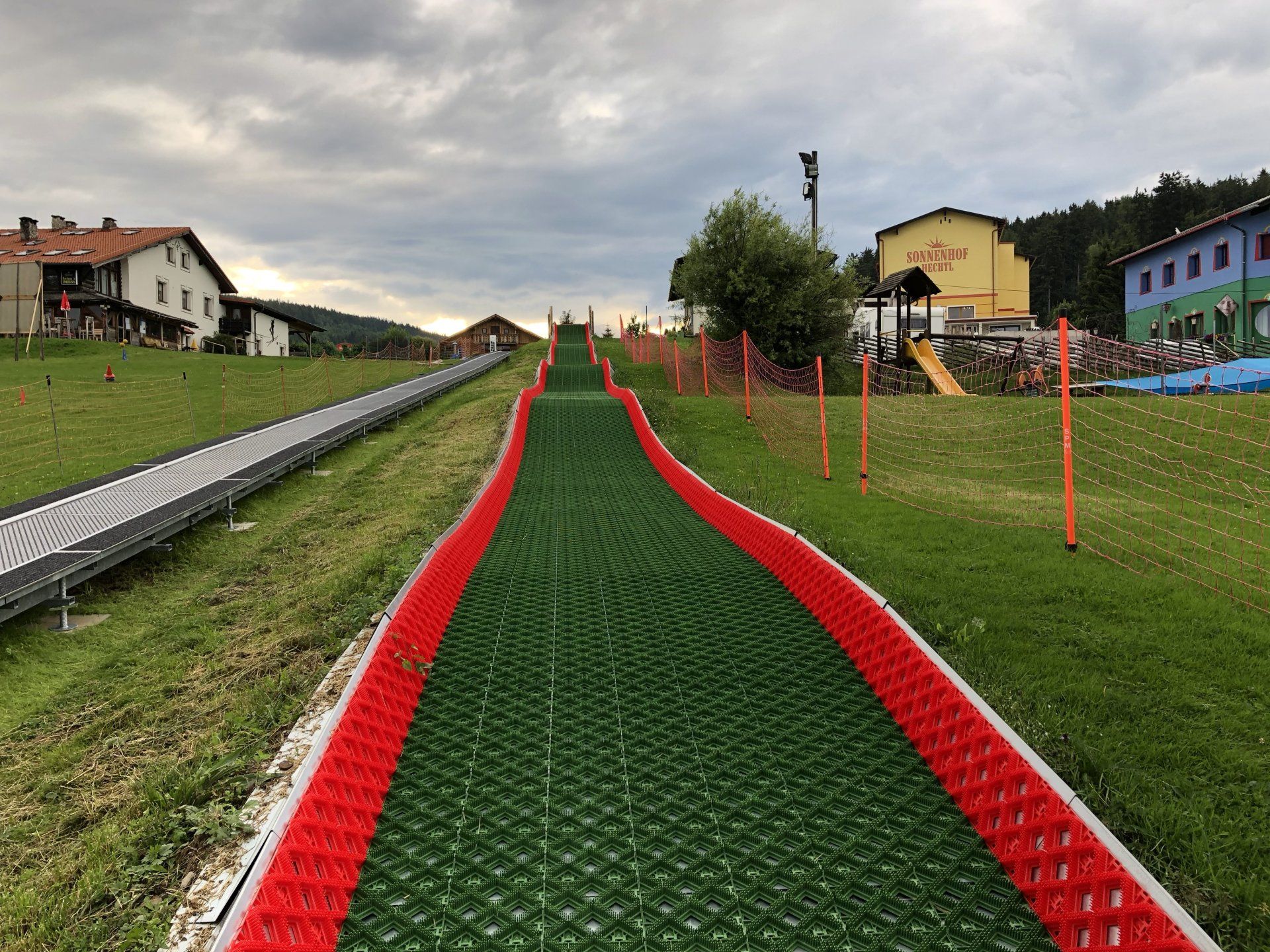

TubTrax-M1

Straight track - single or multi-track - closed floor module

Features:

The entire metal structure is connected.
Laying one behind the other and/or next to each other.
All parts are rustproof zinc-plated.
Anchoring to the ground using sturdy, twisted ground stakes.
Mats are assembled for both straight and side construction.
Running width for the tubing tires: 1.54 m: 2 x 22cm sidewalls.
Mats are screwed onto the metal structure.
Packed on special wooden pallets.

Advantages:

Module Installation.
Clean, complete protection from grass and stones.
Quickly lay the straight lines using mats.
Quickly dismantle the straight sections using mats.
Clean loading onto pallets.
Professional, durable construction.
Compatible with Tubtrax 2 3.
Delivery includes ground stakes and screws.
Galvanized, durable construction.

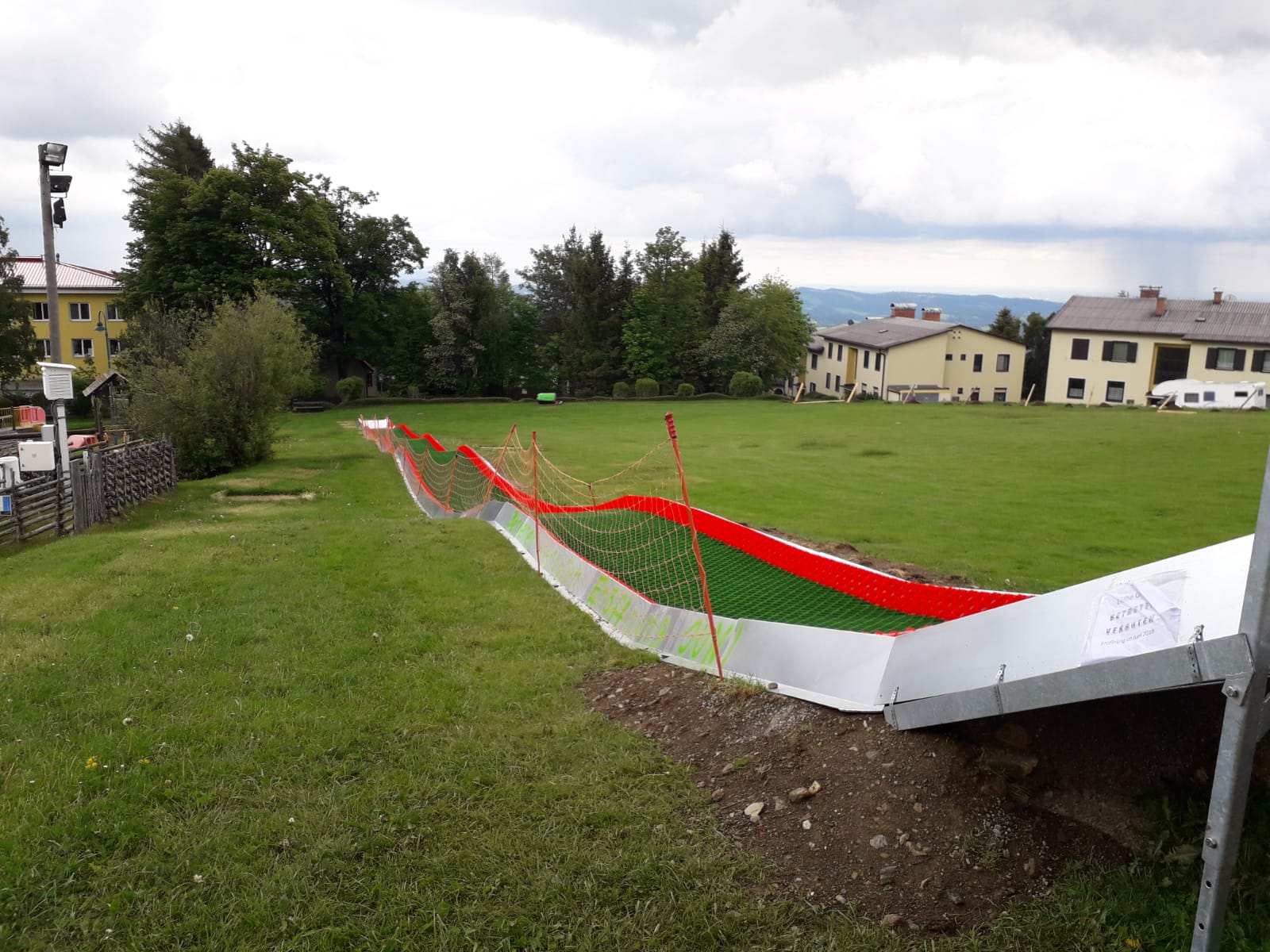

TubTrax-M2.1.

Straight track - single or multi-track - open module with fleece or DSDF

Features:

Side rails can be freely positioned on the right and left.
Laying in series or side by side for multiple lanes.
Side straights can be individually designed to the desired width (1.37m - 1.60m /- x).
All parts are rustproof zinc-plated.
7 mm thick fleece or Dry Slope Drain Fleece©
Fleece is attached between the side modules.
This ensures optimal drainage of rainwater or meltwater.
Optimal protection against dirt from below and UV rays from above.
High quality for long-term use.
Securing mats and fleece with ground pegs and screws.

Advantages:

Module Installation.
Weight reduction and easier transport.
Cost-effective version.
Quick laying and dismantling of straight sections with "DSDF".
Quickly dismantle the straight sections using mats.
Compatible with Tubtrax 1 3.
Loading onto pallets (120cm x 100cm)
Galvanized, durable construction.
Delivery includes ground stakes and screws.

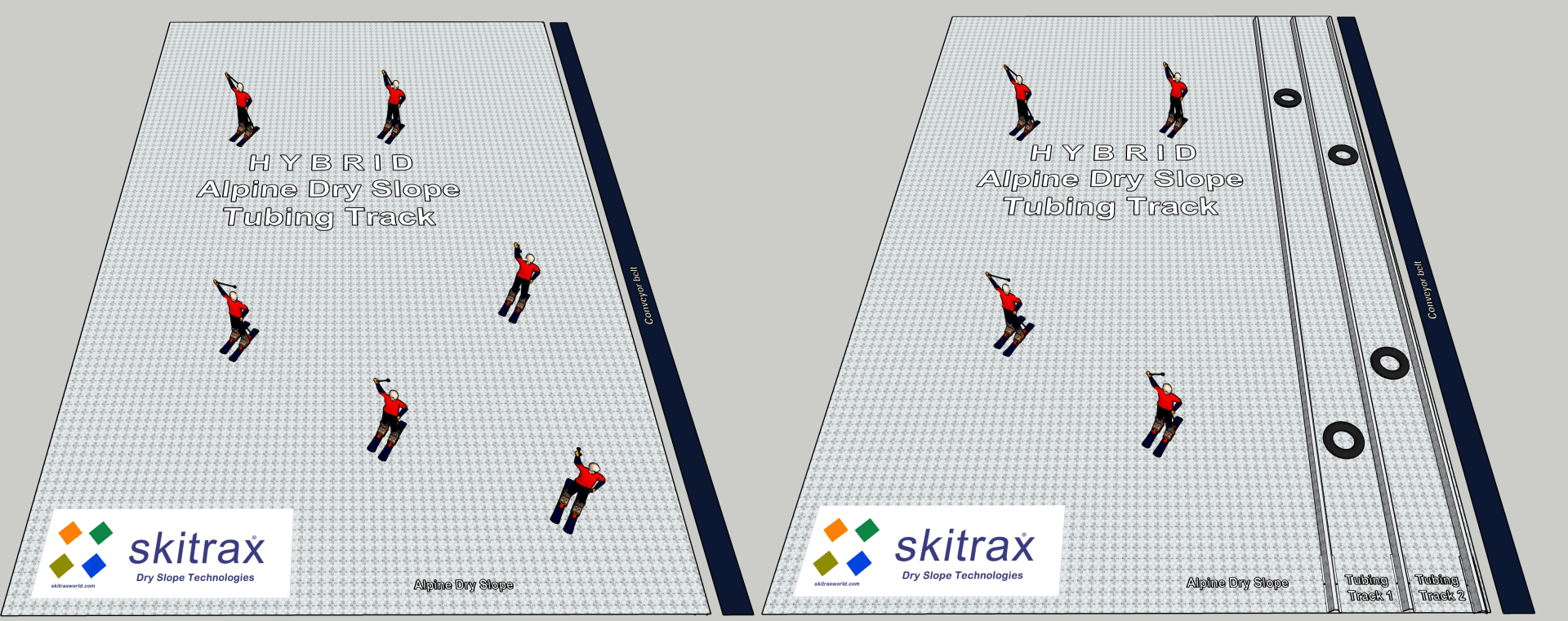

TubTrax-M2.2.

Hybrid tubing track as a temporary module for existing mat ski slopes.

Quick installation and quick uninstallation.

Features:

Floor construction as per M2.1.
The mats marked (e.g. red) are folded up and the M2.2 modules are slid underneath.
Fastening with screw-in ground stakes.
The side straights are designed to fit approximately 1.60m of width on the tubing track - they fit exactly between two (red) mats.
Modules can be removed after use for tubing.
The mats automatically fold back flat onto the slope.
The entire area is once again usable for skiing.
Galvanized, durable construction.

Advantages:

Same advantages as Tubtrax-M2.
Flexible installation option for multiple tubing tracks on existing mat ski slopes.

Usage - Summer:
Multiple lanes side by side with modular installation.
The pre-installed mats are folded up and the modules are slid underneath.
One or more tracks can be installed quickly - and uninstalled just as quickly.

Usage - Winter:
Removing the modules restores a flat surface.
The mat area can be used for ski school or for creating tubing tracks with snow.
